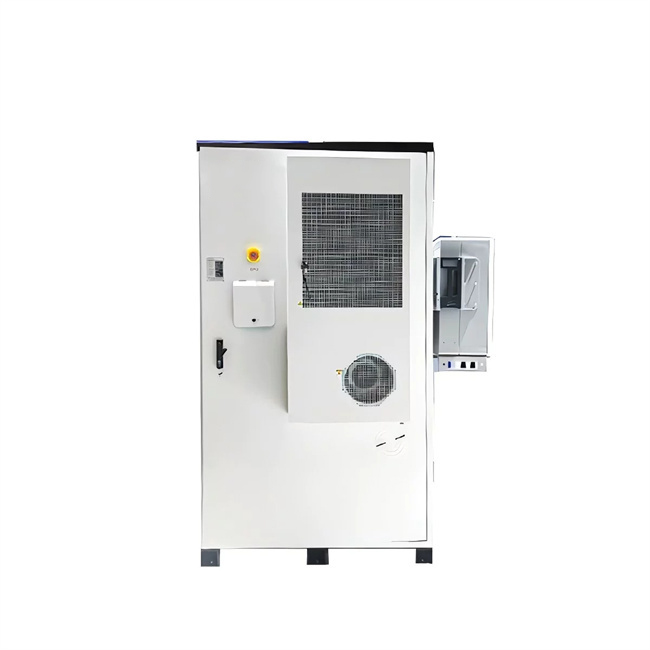

EK-372KWh Outdoor Cabinet Series C&I Energy Storage System-

Products Categories

Choose Your Tagss

Contact Us

⚪-Farms and Estates: Energy-intensive agricultural operations.
🟠-Microgrid Solutions: Suitable for building independent energy networks.
🔵-Industrial Facilities with High Power Demands: Factories and production workshops with large fluctuations in energy consumption.
🔴-Data Centers and IT Infrastructure: Suitable for those who need uninterrupted high-performance power solutions.

Get Price

TAG: 372KWh, Battery, cabinet, Energy Storage, outdoor

Descriptions:

Energy storage outdoor integrated cabinet is a distributed energy storage system suitable for industrial and commercial scenarios. It can convert renewable energy such as solar energy and wind energy into electrical energy for storage. EK-372KWh Outdoor Cabinet, User side - Industrial and commercial energy storage Cabinet protection level IP54, fire isolation, safety design Can be freely installed according to site requirements Service life is increased by more than 20% compared with air cooling PACK-level fire protection, temperature difference between clusters of cells ≤5°

Product Advantages

1.Product Advantages

Standardized cabinets realize safe isolation of energy storage system partitions, 9-level active safety monitoring and early warning design, and PACK-level immersion patented fire protection technology to ensure system safety and controllability.

2.Economical and efficient

The single battery string design with zero parallel loss, high-efficiency multi-level topology and minimum loss frequency conversion modulation technology, optimal air duct design and intelligent ambient temperature control technology, and PCS and battery string efficiency optimal fitting technology make the system conversion efficiency >91%.

3.Intelligent and friendly

Embedded with multiple operation control modes such as peak shaving and valley filling, demand management, solar storage control, storage and charging control, high-speed dispatching, etc., it is suitable for almost all application scenarios; the operation data can be accessed to the cloud platform through WIFI, 5G, LAN, etc., to achieve unattended operation.

4.Plug and Play

Integrates all energy storage system components, and its output can be directly connected to wind power and photovoltaic systems. A single cabinet can be fully autonomously controlled, and multiple cabinets can be connected in parallel to achieve unlimited expansion of the energy storage system, truly realizing the plug and play of the energy storage system.

Parameters

AC/DC parameters

EK--372KWh Outdoor Cabinet (150KW/372KWh)
DC parameters		AC parameters
Battery Type	Lithium Iron Phosphate	AC side rated power	150KW
Cell capacity	3.2V/280Ah	Maximum power on AC side	165KW
System battery configuration	1P416S	Cable total harmonic distortion rate	<3% of rated power
Battery rated capacity	372kWh	AC side rated voltage	380VAC
Battery voltage range	DC1165-1500V	Communication access method	3P+N+PE
Charge and discharge rate	0.5C	Rated grid frequency	50/60Hz
Discharge depth	80%	Power factor range	0.98
Battery cooling method	liquid cooling	Off-grid operation	support

System parameters

Size	140013002350mm(reference)	Temperature control method	Liquid cooling unit
Protection level	IP55	Fire protection plan	Aerosol, perfluorohexanone
System communication protocol	Standard: Modbus	Communication Interface	RS485, RJ45

Conclusion:

PACK level immersive fire protection, high safety
Cabinet IP55 high protection level, suitable for complex outdoor scenes
Flexible deployment, plug and play, shortening the construction cycle
Intelligent battery health management (health assessment, safety warning, life prediction), comprehensive control of system operating status and risks, safe operation and maintenance
High-speed dispatch response, cell temperature difference between clusters is ≤3°C, significantly extending battery life

EK-372KWh Outdoor Cabinet Series C&I Energy Storage System
