🔴 - Support multiple operation modes: compatible with grid-connected and off-grid operation modes.
⚪ - High integration and integrated system: integrated intelligent energy management system.
⚪ - High compatibility: compatible with solar photovoltaic systems.
🔴 - Integrated safety functions: including overvoltage, overcurrent and short-circuit protection.

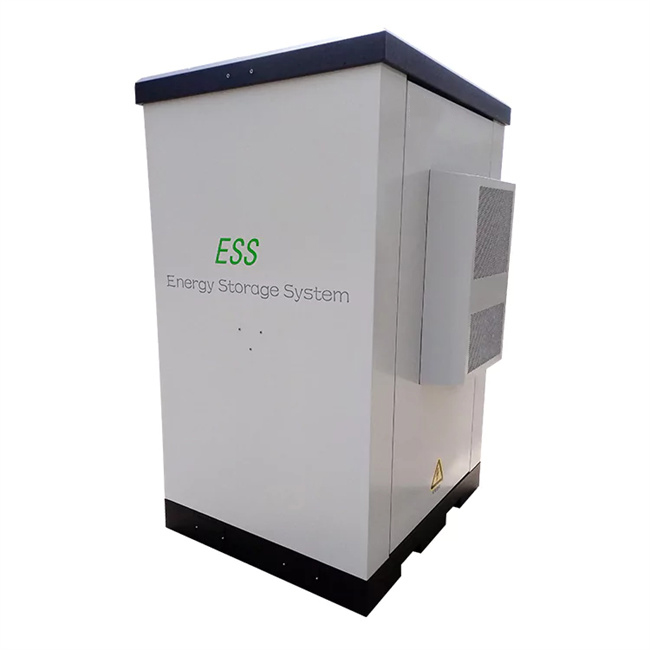

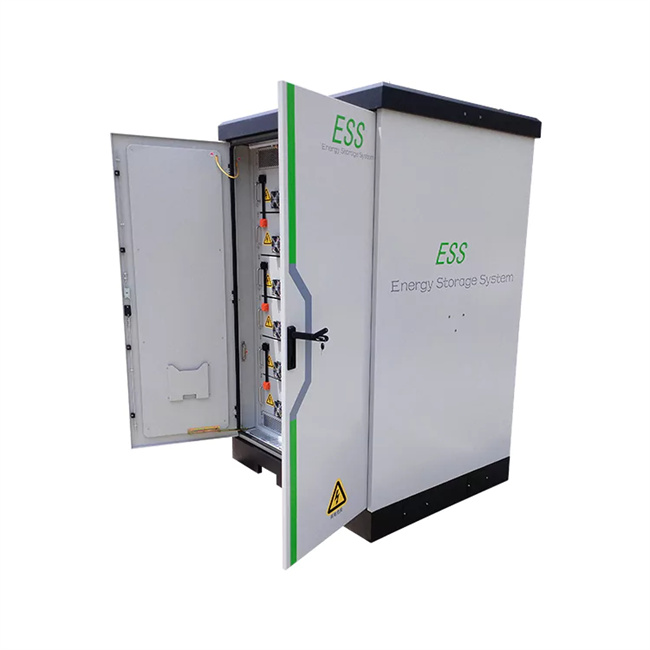

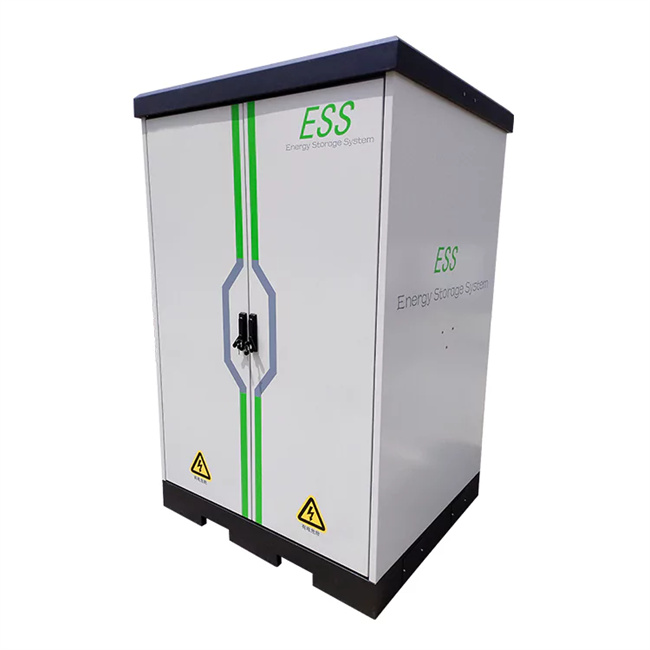

EK-ESS-215A Outdoor Cabinet Series (100KW/215KWh) is an energy storage solution designed for industrial and commercial environments. Here is its basic information:
The system uses advanced battery technology and intelligent management system to provide efficient and reliable energy storage capabilities to meet various energy storage needs in the industrial and commercial fields.
Suitable for various industrial and commercial environments, such as factories, commercial buildings, data centers, etc., providing backup power, peak shaving, demand response and other energy storage services for these places.
| Product model: EK-ESS-215A (100KW/215KWh) | |||
| DC parameters | AC parameters | ||
| Battery Type | Lithium Iron Phosphate | AC side rated power | 100KW |
| Cell capacity | 3.2V/280Ah | Maximum power on AC side | 110KW |
| System battery configuration | 1P240S | Cable total harmonic distortion rate | <3% of rated power |
| Battery rated capacity | 215kWh | AC side rated voltage | 380VAC |
| Battery voltage range | DC636-876V | Communication access method | 3P+N+PE |
| Charge and discharge rate | 0.5C | Rated grid frequency | 50/60Hz |
| Discharge depth | 80% | Power factor range | 0.98 |
| Battery cooling method | air cooling | Off-grid operation | support |
| size | 1600*1280*2200mm(reference) | Temperature control method | Industrial grade temperature controlled air conditioner |
| Protection level | IP55 | fire protection plan | Aerosol, perfluorohexanone |
| System communication protocol | Standard: Modbus | Communication Interface | RS485, RJ45 |
The 215KWh outdoor cabinet series industrial and commercial energy storage system has broad application prospects in the field of industrial and commercial energy storage due to its high energy density, intelligent management, safety and reliability, and easy maintenance. The system can not only provide stable and reliable energy storage services, but also help users reduce electricity costs and improve energy efficiency.
