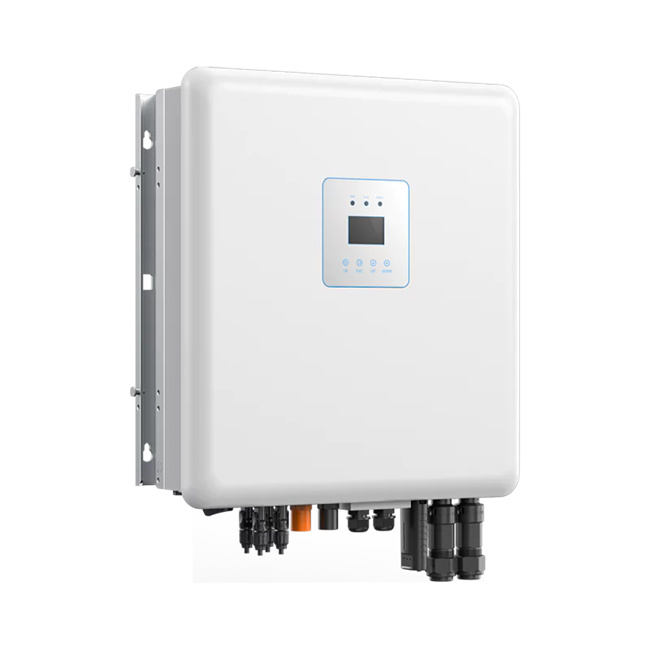

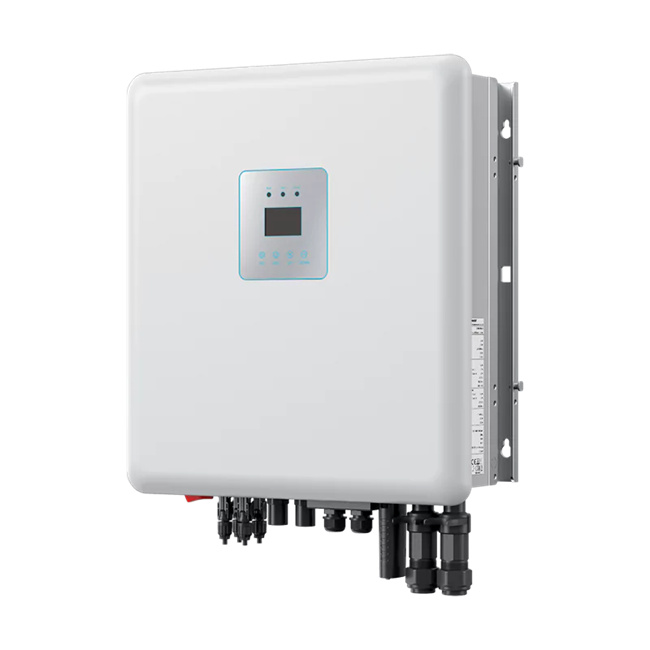

EK-HIH48 Hybrid Grid Inverter-

Products Categories

Choose Your Tagss

Contact Us

🔴 - MPPT technology: dynamically adjust to the optimal power point.
🔵 - Seamless grid integration: automatically switch to solar or battery power when the grid is out of power.
🔴 - Smarter control: real-time monitoring and advanced battery management.
🔵 - Visualization: information is displayed on the LCD screen, and supports Bluetooth mobile app monitoring.

Get Price

TAG: Battery, grid, hybrid, inverter, residential

Descriptions:

What is a hybrid inverter?

Hybrid grid inverters are similar to standard inverters, except they can work with AC power.
Unlike PV inverters, hybrid inverters have a battery port, which allows for bidirectional power conversion.
It is possible to use a hybrid inverter with or without a battery.

Hybrid grid inverters are unique in that they offer a higher DC to AC ratio but with no energy loss because the excess power generated by the solar system will be stored in the battery.

Where are hybrid grid inverters suitable?

Hybrid grid inverters are most commonly used in residential string solar systems. For larger rooftops, you can install a string system where the hybrid grid inverter will play the role of a string inverter but with an additional battery port.

EK-HIH4805

Parameters：

Parameter items	Specification Description
Product number	EK-HIH4833EW	EK-HIH4853EW	EK-HIH4883EW	EK-HIH4814EW
Inverter type	Hybrid grid type (On-Off-grid type) inverter
Inverter output power	3000W	5000W	8000W	10000W
AC voltage	(220Vac~240Vac)±5%
battery voltage	48Vdc
PV input voltage	150~500Vdc
Photovoltaic input power	3000W	5000W	8000W	10000W
way of communication	RS485/CAN/WIFI
Display	LCD/LED display
Protection level	IP65
