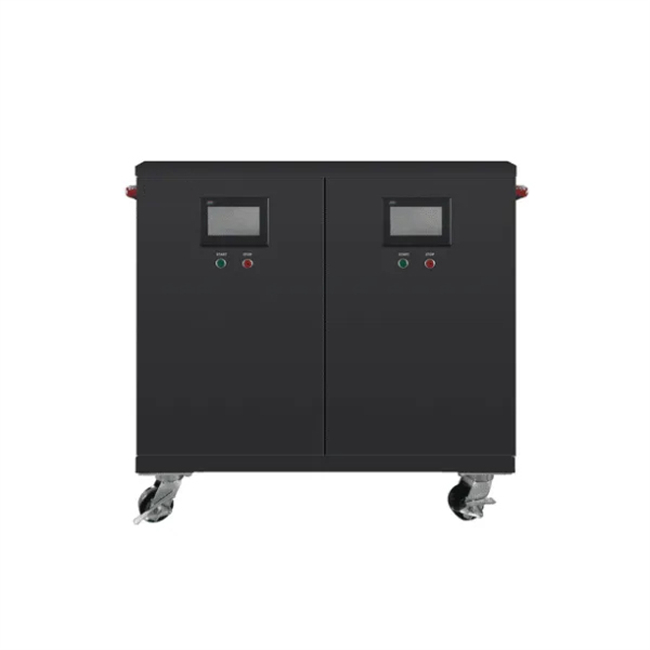

EK-MHC01 Household Solar Power Storage Cabinet-

Products Categories

Choose Your Tagss

Contact Us

🔴- The appearance and color of the cabinet can be customized.
🔵- The battery capacity can be expanded, and the product power can also be expanded.
🔴- Indoor and outdoor use can be customized.
🔵- The battery configuration can be selected within the capacity range.

Get Price

TAG: Energy storage cabinet, Home, Lithium iron phosphate battery, Mobile power, solar energy, Solution

Descriptions:

The EK-MHC01 home solar energy storage cabinet's mobile power unit is a rugged solution for demanding on-site requirements, including security lighting, surveillance, communications and other power needs. No maintenance or upkeep costs are required, making the EK-MHC01 an ideal solution for temporary or long-term deployments. The design of the EK-MHC01 is optimized for performance and reliability, ensuring continuous use and on-demand power.

Features

It can automatically switch between Solar power, City power and battery power.
Support APP and Wi-Fi remote monitoring.
Adopt LED display to show the operating conditions of solar power, city power, battery, and load.
The excess solar power will directly enter the grid, increasing the return on investment.
High cycle times lithium iron phosphate battery.
Home smart energy management.
There are two configuration options of single-phase and three-phase.
Installation is simple, only need to have basic electrician knowledge to install and use.

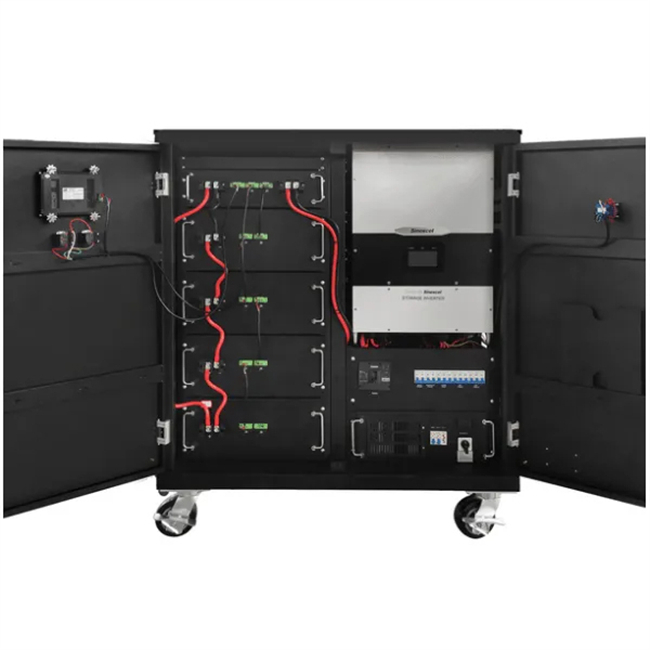

Modular components, easy to maintain and repair.

Parameter

Battery Capacity Range	5KWH-20KWH	10KWH–40KWH	15KWH-60KWH	15KWH-60KWH
PV SOLAR CHARGE
MAX PV Array Power	5KW	10KW	15KW	15KW
MAX PV Array Open Circuit voltage	500VDC
MPPT Range /operating Voltage	120-450VDC
MAX Charge current	90A DC	180A	270A	270A
MAX efficiency	0.98
GRID-TIE OPERATION
GRID-OUTPUT(AC)
output waveform	Pure sine wave
Phase electricity	Single-phase			Three-phase
Nominal output voltage	230V AC			400VAC
Nominal output current	23.9A AC	47.8A AC	71.7A AC	23.9A AC
Efficiency	0.935
OFF-GRID HYBRID OPERATION
GRID INPUT
Acceptable input voltage range	120V~280V			320V-480V
Frequency range	50/60Hz(Auto-sensing)
Battery mode output AC nominal output voltage	230V AC			400VAC
Battery Charger
Battery Voltage	51.2VDC
Charge Voltage	57.6VDC
Overcharge Protection	59.2VDC
MAX AC Charge current	120A	60A	180A	180A
Automatic transfer time	<15ms
Parallel function	yes
Communication	USB OR RS 232
Humidity	0-90%RH(No condensing)
Operating Temp	0~50℃
Size	600×800×1300	1150×800×1300	1150×800×2000	1150×800×2000
Max Weight	430KG	650KG	980KG	980KG

Conclusion

EK-MHC01 can easily connect to lithium batteries and inverters and/or solar controllers. With the ability to connect to solar panels, they can directly operate off-grid power systems. With their simple, portable design, they are ideal for use in areas where power is scarce and unstable.

EK-MHC01 Household Solar Power Storage Cabinet
