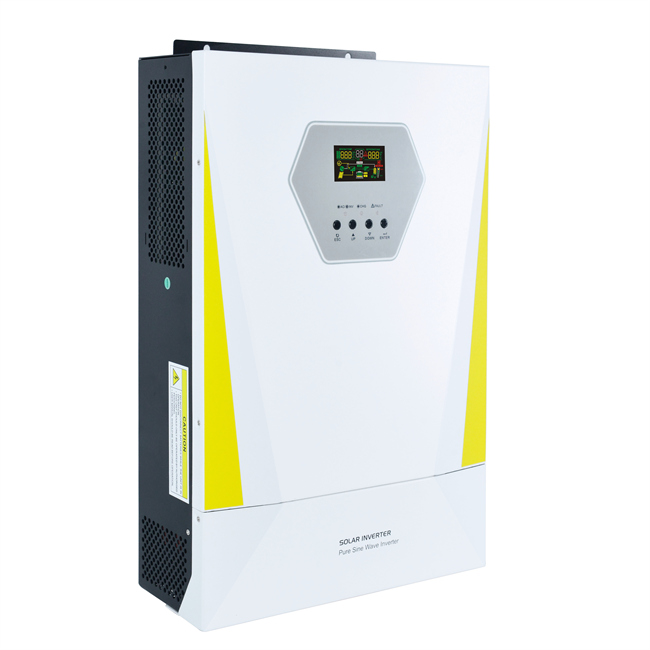

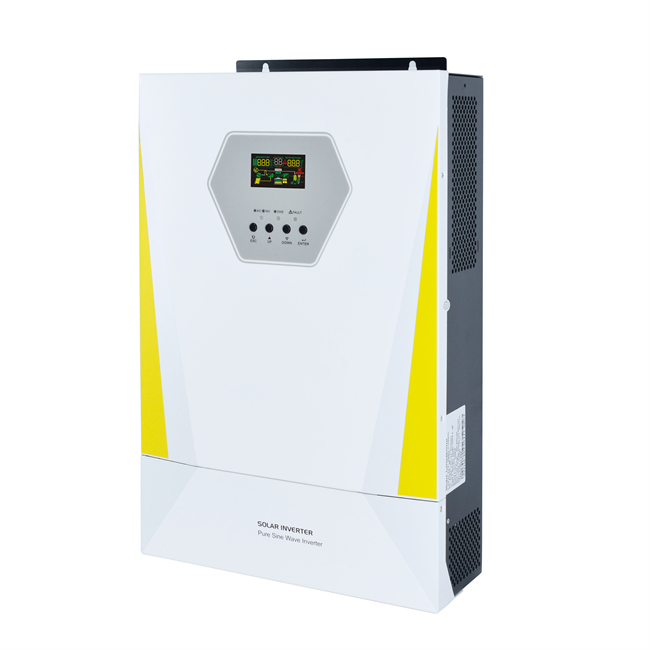

GD-E Series 1200W~2400W Solar Inverter-

Products Categories

Choose Your Tagss

Contact Us

🔴 - AC input: 90-280VAC, 50/60Hz.
🔵 - Inverter output: 220~240VAC±5%.
🔴 - Maximum AC charging current: 60A/80A.
🔵 - PV controller: MPPT, 12V/60A, 24V/100A.
🔴 - PV input voltage range: 40-450VDC.
🔵 - Maximum PV array power: 2000W/3000W.
🔴 - Load peak ratio: (MAX) 2:1.
🔵 - Lithium battery self-start: No.
🔴 - Lithium battery communication: Yes.

Get Price

TAG: 1200W, 2400W, inverter, Solar, Solar Panel, Waterproof

Descriptions:

GD-E series 1200W~2400W solar inverter, IP65 waterproof, suitable for solar panel system, 24V/48V DC to 120V AC, 24V/48V DC to 230V AC available, unique circuit design, higher efficiency and more stable. GD-E series inverter can improve system monitoring and maintenance. Since each panel has its own inverter, it is easier to identify problems at the panel level and solve them in time.

Feature：

Low no-load loss, lower than high-frequency machines of the same power.
Pure sine wave output, suitable for different loads.
Multiple parameters can be adjusted according to user needs.
Thin body, easy to install and transport.
Battery reverse protection with fuse switch, safer installation.
Optional solar controller with MPPT.
High output voltage accuracy, protect your appliances.
External lithium battery WlFl/BMS function.

Parameters:

Model		GD-E2012EMH	GD-E3024EMH
AC input voltage	AC Input	220VAC(standard)/110VAC(customize)
	Input Voltage Range	90-280VAC±3V(Normal Mode)170-280VAC±3V (UPS Mode)
	input Frequency	50/60Hz±5%
Output	Rated Power	1600W	3000W
	Output Voltage	The output voltage under mains power is the same as the input voltage
	Output Frequency	Tho output froquency under mains power is the sameas the input frequency
	Output Voltago	220VAC±10%(110VAC±10%)
	Output Frequency	50HZ OR 60HZ±1%
	Output Wave	Pure Sine Wave
Battery	Battery Type	External leod-acid battery.Gel battery,water battery or Lithlum battery
	Ratod Voltage	12VDC	24VDC
	Constant Charging Voltage(Adjustable)	14.1VDC	28.2VDC
Charger	Maximum Photovoltaic Array Powor	2000W	3000W
	(MPPT)PV Input Voltage Range	40V-450VDC	40V-500VDC
	MAX PV Input Voltage	400VDC	500VDC
	Best VMP Working Range	300-400VDC	300-400VDC
	MAXPV Charge Curren	60A	100A
	MAX AC Charge Current	60A	60A
	TransferTime	≤10ms(UPS modle)/≤20ms(INV modle)
	Overload Ability	Battery Mode:21s@105%-150%Lood 11s@150g-200%Logg 400ms@>200%Load
Protect	AC	Input overcurrent without fuse switchprotection
	Inversion	overlood,short clrcult,low voltage.battery reverse connection protection(fuse)
Display	Display Screen	Color segment code screen
	Fipping Pages	Can display operating mode/load/input/output
	LED	LED lights display mains power,charging status,inverter status,and fault status
Amblent Temperoture	Operating Temperature	-10°℃~50℃
	storage Temperature	10°℃-60℃
	Sound On	The alarm sound of the buzzer varies depending on the fault code
	Operating Environment Humidity	20%~90% Non Condensing
	Noise	≤50dB
Dimension LWH(mm)		345254105mm
